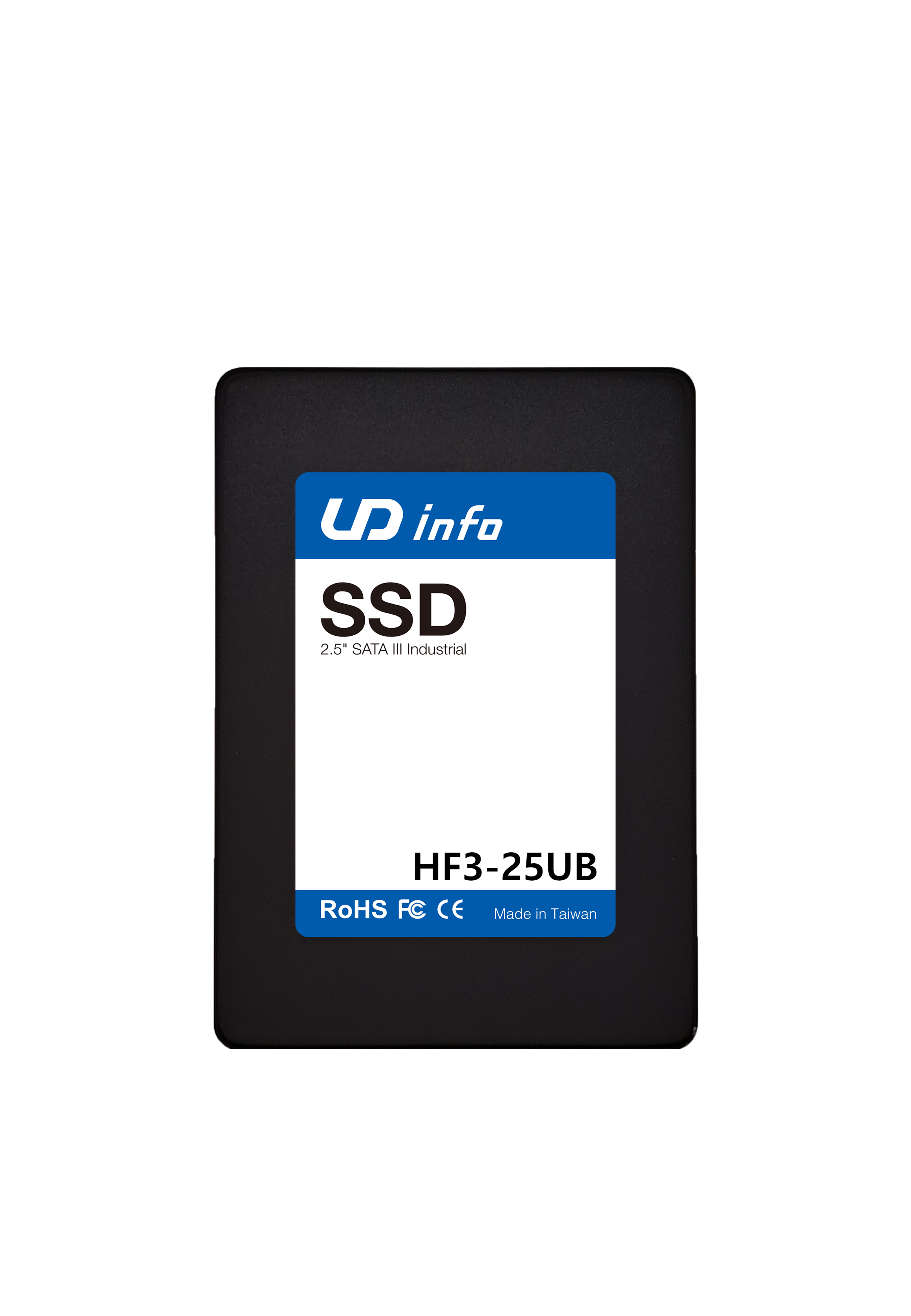

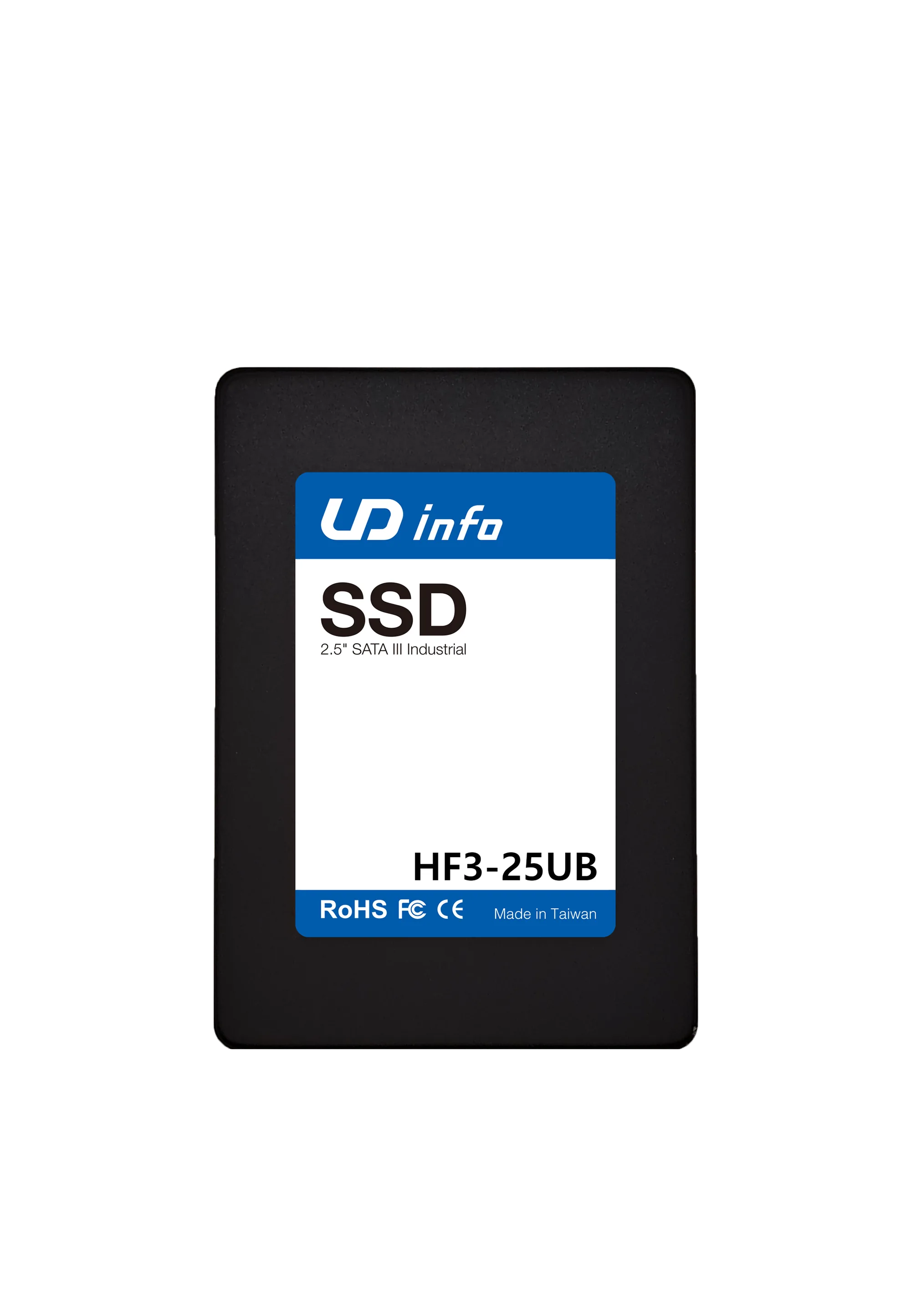

HF3-25UB

SATA Revision 3.1

Being fully compliant with standard 2.5-inch form factor, providing low power consumption compared to traditional hard drive and hot-swapping.
Operating at a maximum operating frequency of 200MHz with 30MHz external crystal.
Provide a wide range up to 1TB, and it can reach up to 550MB/s read as well as 500MB/s write (with 32MB SDR cache enabled and measured by CrystalDiskMark v5.0).

Capacity
Series Name		HF3-25UB
Interface		SATA Revision 3.1
Capacity Coverage		2GB ~ 960GB
	SLC	8GB ~ 128GB
	MLC	4GB ~ 512GB
	2D pSLC	2GB ~ 256GB
	3D TLC	32GB ~ 1TB
	3D pSLC	8GB ~ 256GB
	Performance Overview		Seq. R : 550 MB/s ; Seq. W : 500 MB/s
Performance
	SLC	Seq. R : 540 MB/s ; Seq. W : 420 MB/s
	MLC	Seq. R : 550 MB/s ; Seq. W : 490 MB/s
	2D pSLC	Seq. R : 550 MB/s ; Seq. W : 490 MB/s
	3D TLC	Seq. R : 550 MB/s ; Seq. W : 500 MB/s
	3D pSLC	Seq. R : 550 MB/s ; Seq. W : 490 MB/s
Standard Operating Temperature		0~70°C
Extended Operating Temperature		-40~85°C
Dimension LxWxH (mm)		100.10mm(L) x 69.85mm(W) x 7.00mm(H)
Technology		#S.M.A.R.T #conformal coating ? #Secure Erase ? #Write Protect ?
