Enterprise U.2BU.3 EA / EB

Arrow Down Icon
Products PCIe Enterprise U.2 Enterprise U.2BU.3 EA / EB

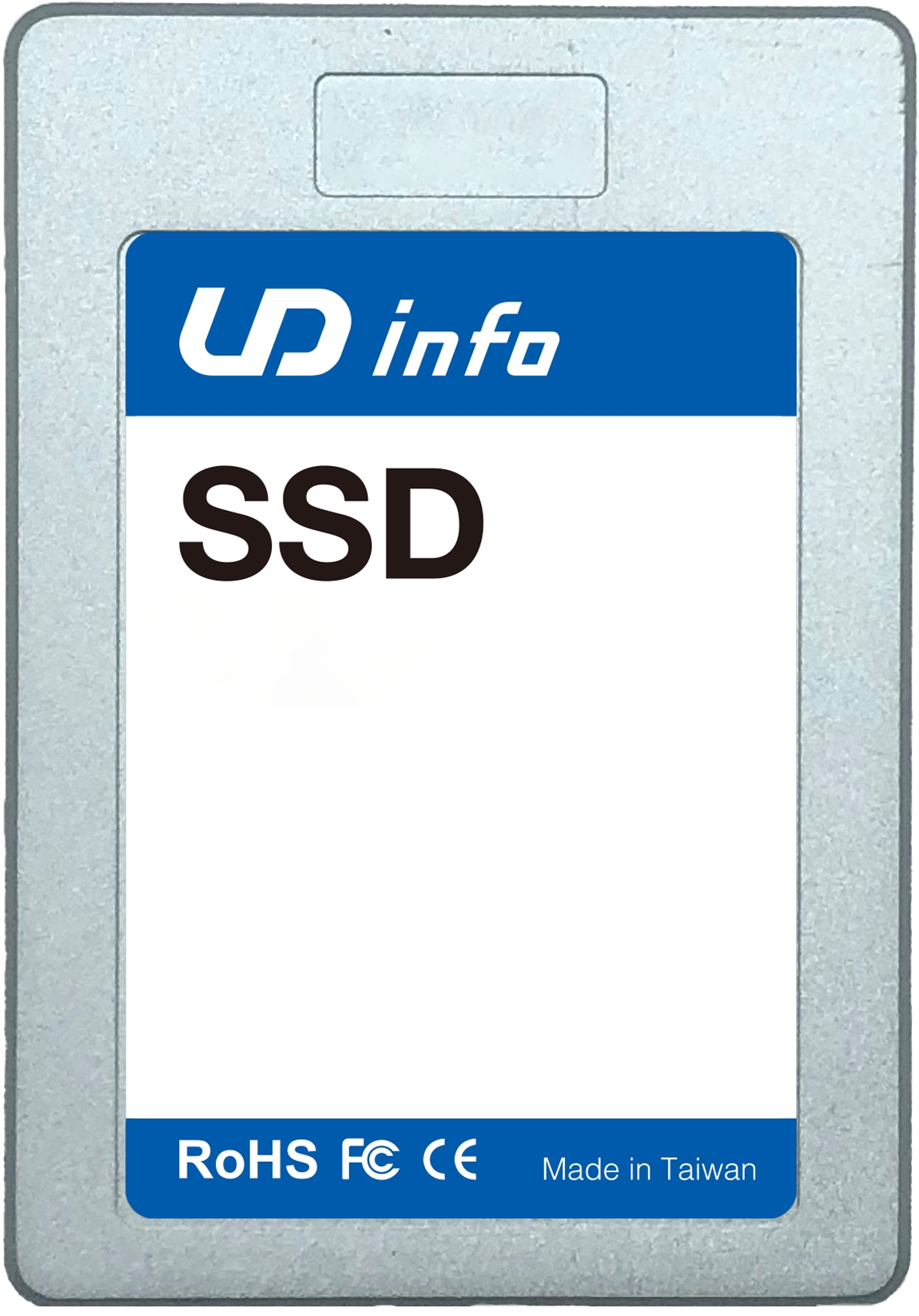

U.3 1

PCIe Gen4 x4

  • Checkmark Icon delivers all the advantages of flash disk technology with PCIe Gen4 x4 interface, including being fully compliant with standard U.2/U.3 form factor.
  • Checkmark Icon providing low power consumption compared to traditional hard drive and hot-swapping when removing/replacing/upgrading flash disks.
  • Checkmark Icon offer a wide range of capacities up to 30,720GB and performance can reach up to 7000 MB/s (for sequential read) and 7000 MB/s (for sequential write) based on eTLC NAND flash with the DDR4..
  • Checkmark Icon the power consumption of U.2/ U.3 SSD is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Download Files

Product Specifications

Series Name Enterprise U.2BU.3 EA / EB
Interface PCIe Gen4 x4
Capacity Coverage OP = 7% : 1920/3840/7680/15360/30720 GB / OP = 28% : 1600/3200/6400/12800/25600 GB
Performance Overview Seq. R : 7000 MB/s ; Seq. W : 6800 MB/s
Performance
3D TLC Seq. R : 7000 MB/s ; Seq. W : 6800 MB/s
Standard Operating Temperature 0 ~ 70 c
Dimension LxWxH (mm) 100(L) x 70(W) x 15(H)mm
Technology #S.M.A.R.T #PLP ? #OPAL ? #Thermal Throttling ? #AES-XTS ?
