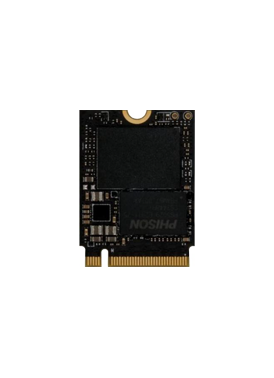

M2P-30DP
NVMe PCIe Gen4 x4
-
The device is designed based on the M.2 2230 standard. It offers up to 2TB.
-
Performance can reach up to 7,200MB/s read as well as 6,300MB/s write high performance based on 218Layers 3D TLC NAND flash.
Download Files
Product Specifications
| Series Name | M2P-30DP | ||||
|---|---|---|---|---|---|
| Interface | NVMe PCIe Gen4 x4 | ||||
| Capacity Coverage | 160GB~2TB | ||||
| Capacity | |||||
| 3D TLC | 512GB up to 2TB | ||||
| 3D pSLC | 160GB up to 640GB | ||||
| Performance Overview | Seq. R :7,200MB/s ; Seq. W : 6,300 MB/s | ||||
| Performance | |||||
| 3D TLC | Seq. R :7,200MB/s ; Seq. W : 6,300 MB/s | ||||
| 3D pSLC | Seq. R :7,200MB/s ; Seq. W : 6,300 MB/s | ||||
| Standard Operating Temperature | 0°C ~ 70°C | ||||
| Extended Operating Temperature | -40°C ~ 85°C | ||||
| Dimension LxWxH (mm) | 30mm(L) x 22mm(W) x 2.3mm(H) | ||||
| Technology | # # OPAL ? | ||||
| Data Sheet |  |
||||
