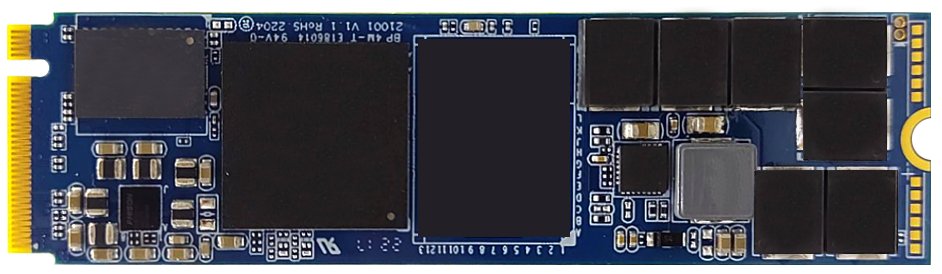

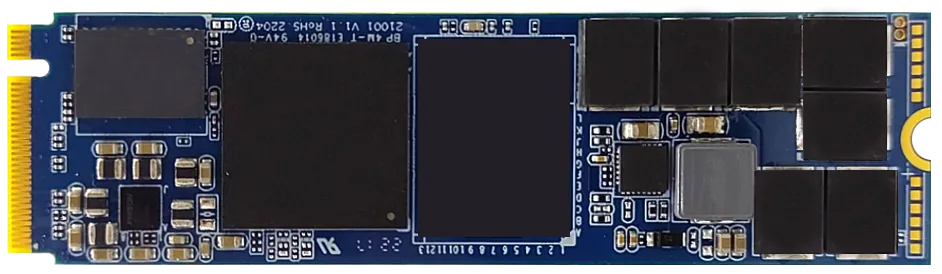

M2P-80DC
NVMe PCIe Gen3 x4
-
The M.2 2280 could provide a wide range capacity up to 1920GB
-
Its performance can reach up to 3,300MB/s read and 1,000MB/s write.
Download Files
Product Specifications
| Series Name | M2P-80DC | ||||
|---|---|---|---|---|---|
| Interface | NVMe PCIe Gen3 x4 | ||||
| Capacity Coverage | 240GB up to 1920GB | ||||
| Capacity | |||||
| 3D TLC | 240GB up to 1920GB | ||||
| Performance Overview | Seq. R : 3300 MB/s ; Seq. W : 1000 MB/s | ||||
| Performance | |||||
| 3D TLC | Seq. R : 3300 MB/s ; Seq. W : 1000 MB/s | ||||
| Standard Operating Temperature | 0°C ~ 70°C | ||||
| Extended Operating Temperature | -40°C ~ 85°C | ||||
| Dimension LxWxH (mm) | Type1: Dimension: 80mm(L) x 22mm(W) x 3.5mm(H) for Non-PLP PCBA Type2: Dimension: 80mm(L) x 22mm(W) x 4.5mm(H) for PLP PCBA |
||||
| Technology | # # OPAL ? # #Thermal throttling ? # #Write Protect ? # #Secure Erase ? | ||||
| Data Sheet |  |
||||
