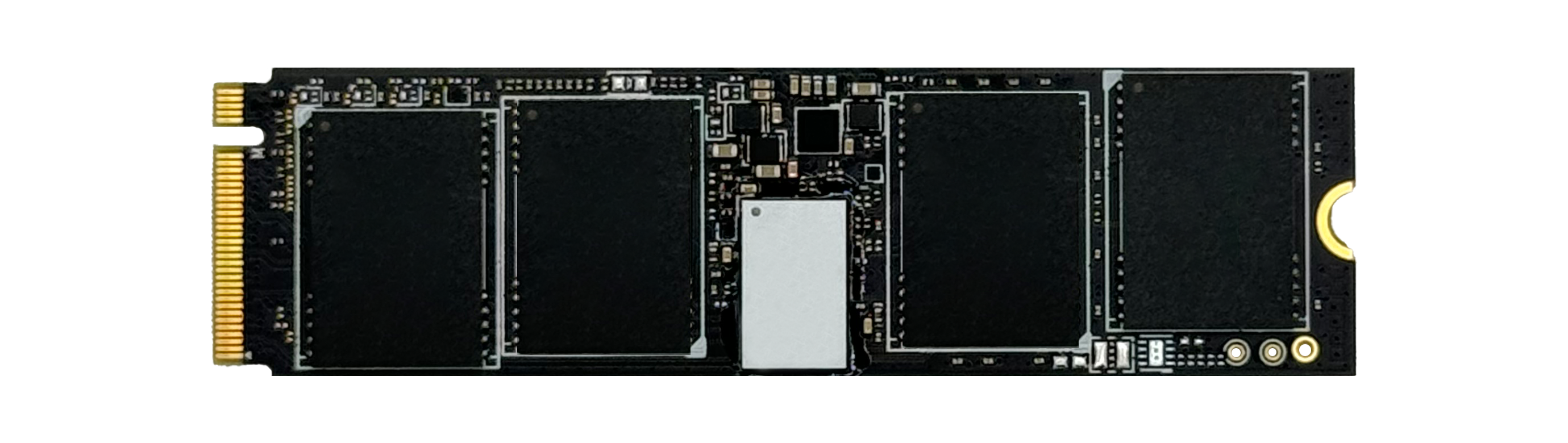

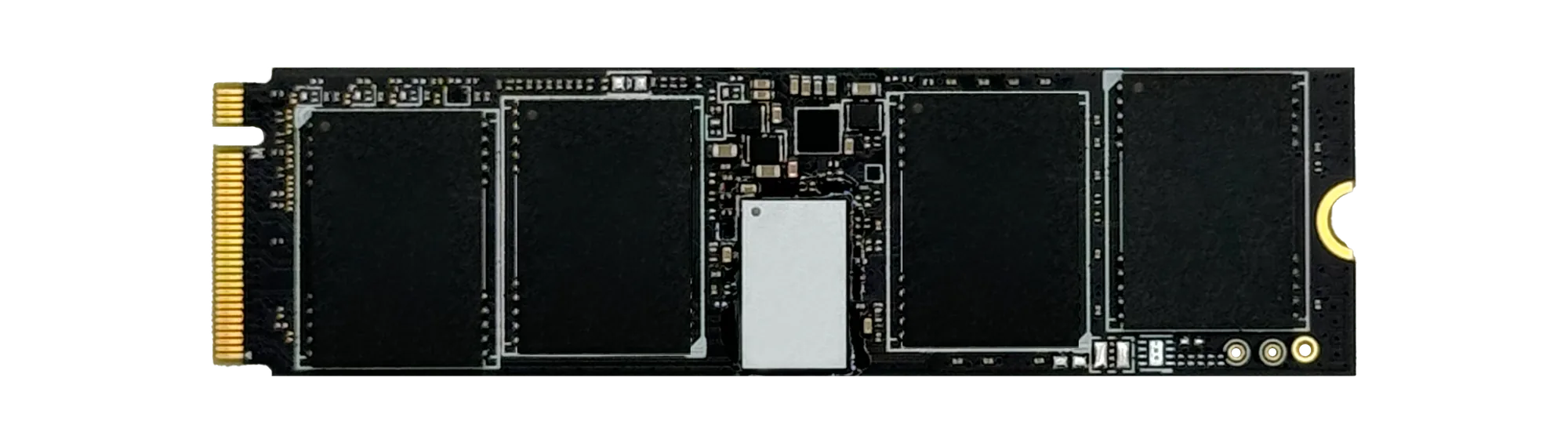

M2P-80DL
NVMe PCIe Gen4 x4
-
It offers up to 2TB
-
Reach up to 4,900MB/s read as well as 3,700MB/s write high performance based on 112Layers 3D TLC NAND flash.
Download Files
Product Specifications
| Series Name | M2P-80DL | ||||
|---|---|---|---|---|---|
| Interface | NVMe PCIe Gen4 x4 | ||||
| Capacity Coverage | 256GB~2TB | ||||
| Capacity | |||||
| 3D TLC | 256GB~2TB | ||||
| Performance Overview | Seq. R : 4900MB/s ; Seq. W : 3700 MB/s | ||||
| Performance | |||||
| 3D TLC | Seq. R : 4900MB/s ; Seq. W : 3700 MB/s | ||||
| Standard Operating Temperature | 0~70°C | ||||
| Extended Operating Temperature | -40~85°C | ||||
| Dimension LxWxH (mm) | 80mm(L) x 22mm(W) x 2.15mm(H) | ||||
| Technology | #S.M.A.R.T #OPAL ? #Write Protect ? #conformal coating ? | ||||
| Data Sheet |  |
||||
