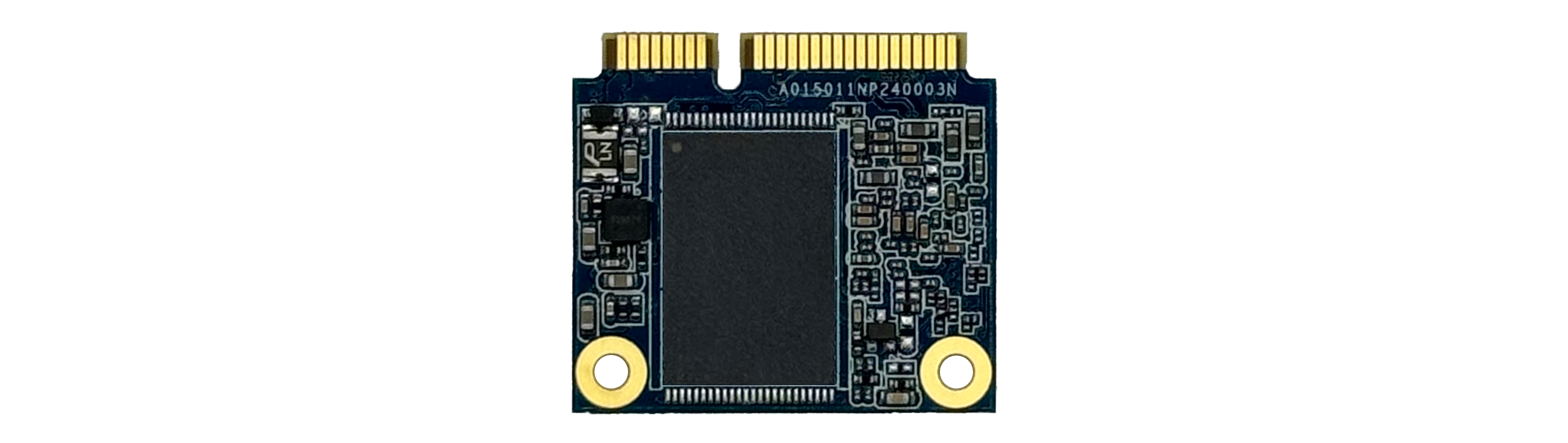

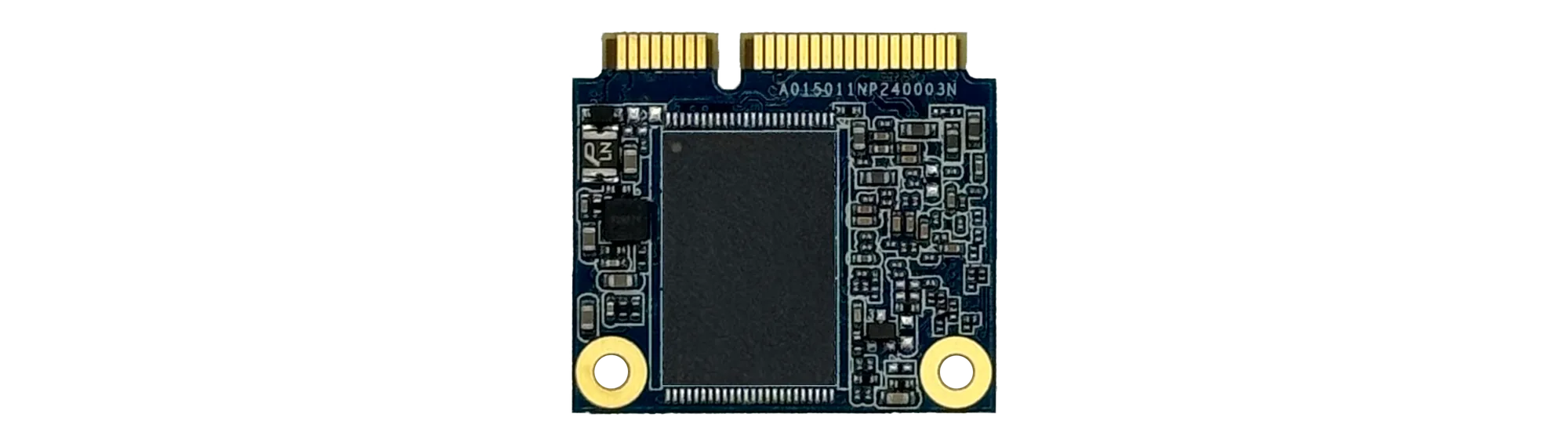

HMH-52UK

SATA Revision 3.1

Fully compliant with the standard mSATA mini form factor, known as JEDEC MO-300 standard.
Operate at a maximum operating frequency of 200MHz with 30MHz external crystal.

Capacity
Series Name		HMH-52UK
Interface		SATA Revision 3.1
Capacity Coverage		8GB ~ 1TB
	SLC	8GB~64GB
	MLC	32GB~256GB
	2D pSLC	16~128GB
	3D TLC	32GB~1TB
	3D pSLC	16GB~128GB
	Performance Overview		Seq. R : 550 MB/s ; Seq. W : 480 MB/s
Performance
	SLC	Seq. R : 540 MB/s ; Seq. W : 300 MB/s
	MLC	Seq. R : 550 MB/s ; Seq. W : 460 MB/s
	2D pSLC	Seq. R : 550 MB/s ; Seq. W : 460 MB/s
	3D TLC	Seq. R : 540 MB/s ; Seq. W : 480 MB/s
	3D pSLC	Seq. R : 540 MB/s ; Seq. W : 490 MB/s
Standard Operating Temperature		0~70°C
Extended Operating Temperature		-40~85°C
Dimension LxWxH (mm)		26.8mm(L) x 29.85mm(W) x 3.7mm(H)
Technology		##S.M.A.R.T # #Conformal Coating ?
