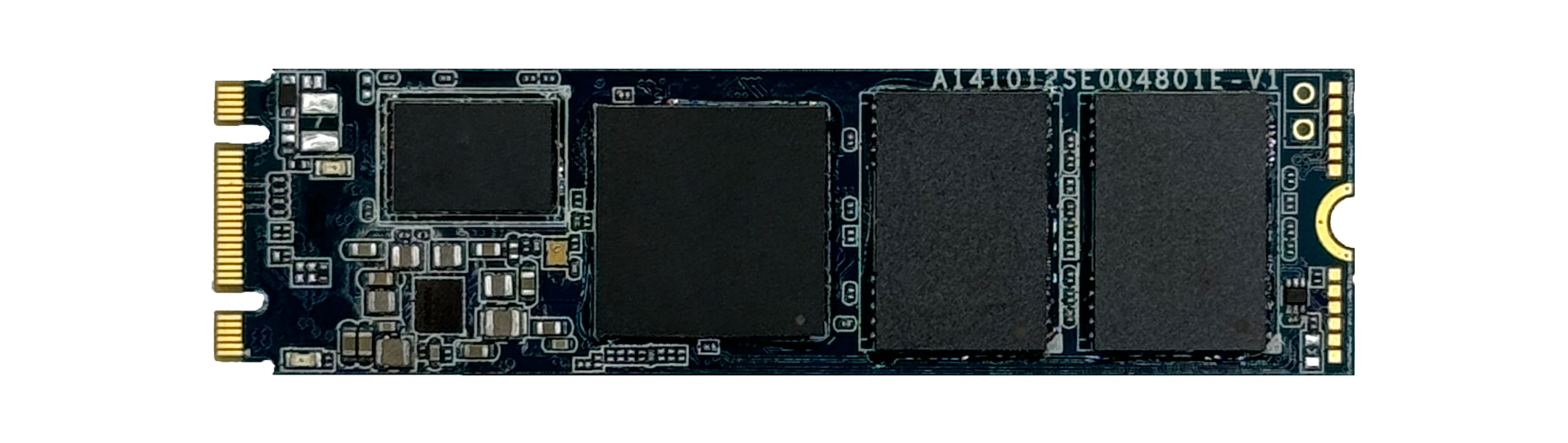

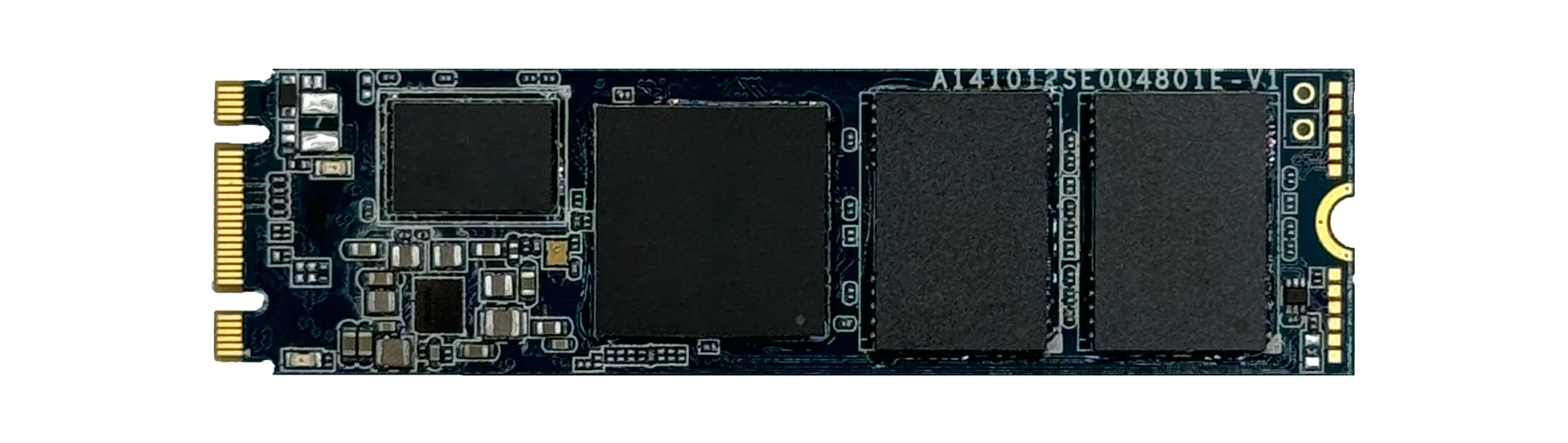

M2S-80DC
SATA Revision 3.1
-
Its capacity could provide a wide range up to 2TB.
-
Operate at a maximum operating frequency of 400MHz with 25MHz external crystal.
-
Reach up to 550MB/s read as well as 530MB/s write high performance based on Kioxia 3D TLC NAND flash.
Download Files
Product Specifications
| Series Name | M2S-80DC | ||||
|---|---|---|---|---|---|
| Interface | SATA Revision 3.1 | ||||
| Capacity Coverage | 120GB ~ 1920GB | ||||
| Capacity | |||||
| 3D TLC | 120GB~1920GB | ||||
| Performance Overview | Seq. R : 550 MB/s ; Seq. W : 530 MB/s | ||||
| Performance | |||||
| 3D TLC | Seq. R : 550 MB/s ; Seq. W : 530 MB/s | ||||
| Standard Operating Temperature | 0~70°C | ||||
| Extended Operating Temperature | -40~85°C | ||||
| Dimension LxWxH (mm) | Type1. double side : 80mm(L) x 22mm(W) x 3.8mm(H) Type2. double side : 80mm(L) x 22mm(W) x 4.1mm(H) for PLP PCBA |
||||
| Technology | #S.M.A.R.T #PLP ? #conformal coating ? #Thermal Throttling ? #Secure Erase ? #OPAL ? | ||||
| Data Sheet |  |
||||
