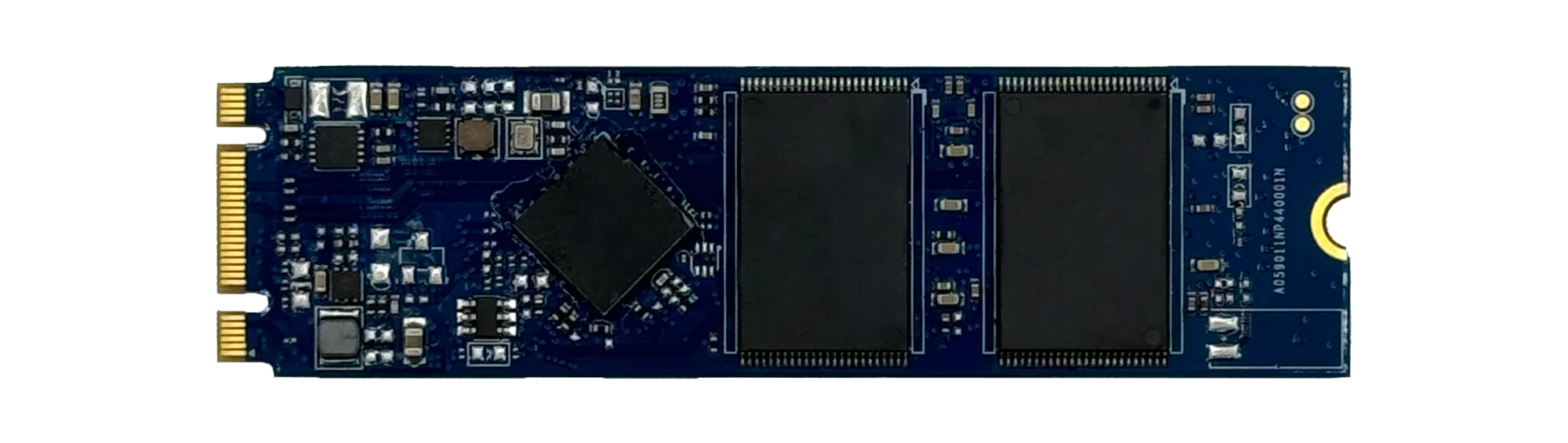

M2S-80UB
SATA Revision 3.1
-
Operate at a maximum operating frequency of 200MHz with 30MHz external crystal.
-
Reach up to 550MB/s read as well as 500MB/s write (with 32MB SDR enabled and measured by CrystalDiskMark v5.0).
-
Provide a wide range up to 1TB.
Download Files
Product Specifications
| Series Name | M2S-80UB | ||||
|---|---|---|---|---|---|
| Interface | SATA Revision 3.1 | ||||
| Capacity Coverage | 2GB~1TB | ||||
| Capacity | |||||
| SLC | 8GB~128GB | ||||
| MLC | 4GB ~ 512GB | ||||
| 2D pSLC | 2GB ~ 256GB | ||||
| 3D TLC | 32GB~1TB | ||||
| 3D pSLC | 8GB ~ 256GB | ||||
| Performance Overview | Seq. R : 550 MB/s ; Seq. W : 500 MB/s | ||||
| Performance | |||||
| SLC | Seq. R : 540 MB/s ; Seq. W : 420 MB/s | ||||
| MLC | Seq. R : 550 MB/s ; Seq. W : 490 MB/s | ||||
| 2D pSLC | Seq. R : 550 MB/s ; Seq. W : 490 MB/s | ||||
| 3D TLC | Seq. R : 550 MB/s ; Seq. W : 500 MB/s | ||||
| 3D pSLC | Seq. R : 550 MB/s ; Seq. W : 490 MB/s | ||||
| Standard Operating Temperature | 0~70°C | ||||
| Extended Operating Temperature | -40~85°C | ||||
| Dimension LxWxH (mm) | Single Side : 80mm(L) x 22mm(W) x 2.3mm(H) Double Side : 80mm(L) x 22mm(W) x 3.8mm(H) |
||||
| Technology | #S.M.A.R.T #conformal coating ? #Write Protect ? #Secure Erase ? | ||||
| Data Sheet |  |
||||
